HX500DK-K多层高速打孔机

组 4.png

标准配置·Standard Configuration 图层 138 拷贝.png



设备介绍 图层 138 拷贝.png

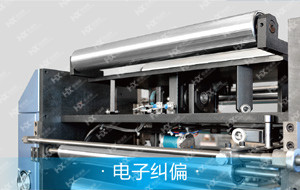

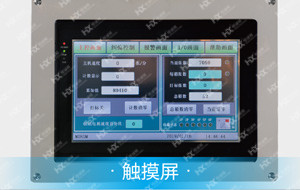

HX500DK-K多层高速打孔机,是我公司最新研发生产的一款新型打孔机,整机采用PLC和触摸屏控制,具有自动纠偏和自动张力控制系统。机身采用了新式底座,在降低了机器高度的基础上,使得机器操作更加方便、运转更加平稳。机器在结构设计上突出了“操作方便“和“高速运转更平稳”的理念,不仅在细节上改进增加了气动压刀、气动压胶轮等,更是采用了全新设计的“日本太阳机式”旋页摆页装置,使出纸更顺畅,可自动完成折页。另外,整机还可选配封闭式除尘装置,能极大的提高产品质量、降低环境污染。


PRODUCT INTRODUCTION 图层 138 拷贝.png


HX500DK-K high speed multi-layer perforating machine is the latest new type perforating machine that we developed. The whole machine is controlled by PLC and touch screen panel, equipped with automatic skew adjustment system and automatic tension control system. With the advantage of it’s new type base, HX500D-K is not only more compact on height, but also more user-friendly and operates more steadily. “Easy to operate” and “Steady operation under high speed” is highlighted during the RND of this machine. Perfection tune for every detail of the product, we revise and add the pneumatic pressure knife, pneumatic rubber wheel, etc., and even more, equipped with the lasted developed “Japanese sun-machine type” page turning & swing device, the output of paper is smoother, and folding of the paper can be done automatically. Seal type dust removing device is optional for the better operation of the machine and reducing environmental pollution.

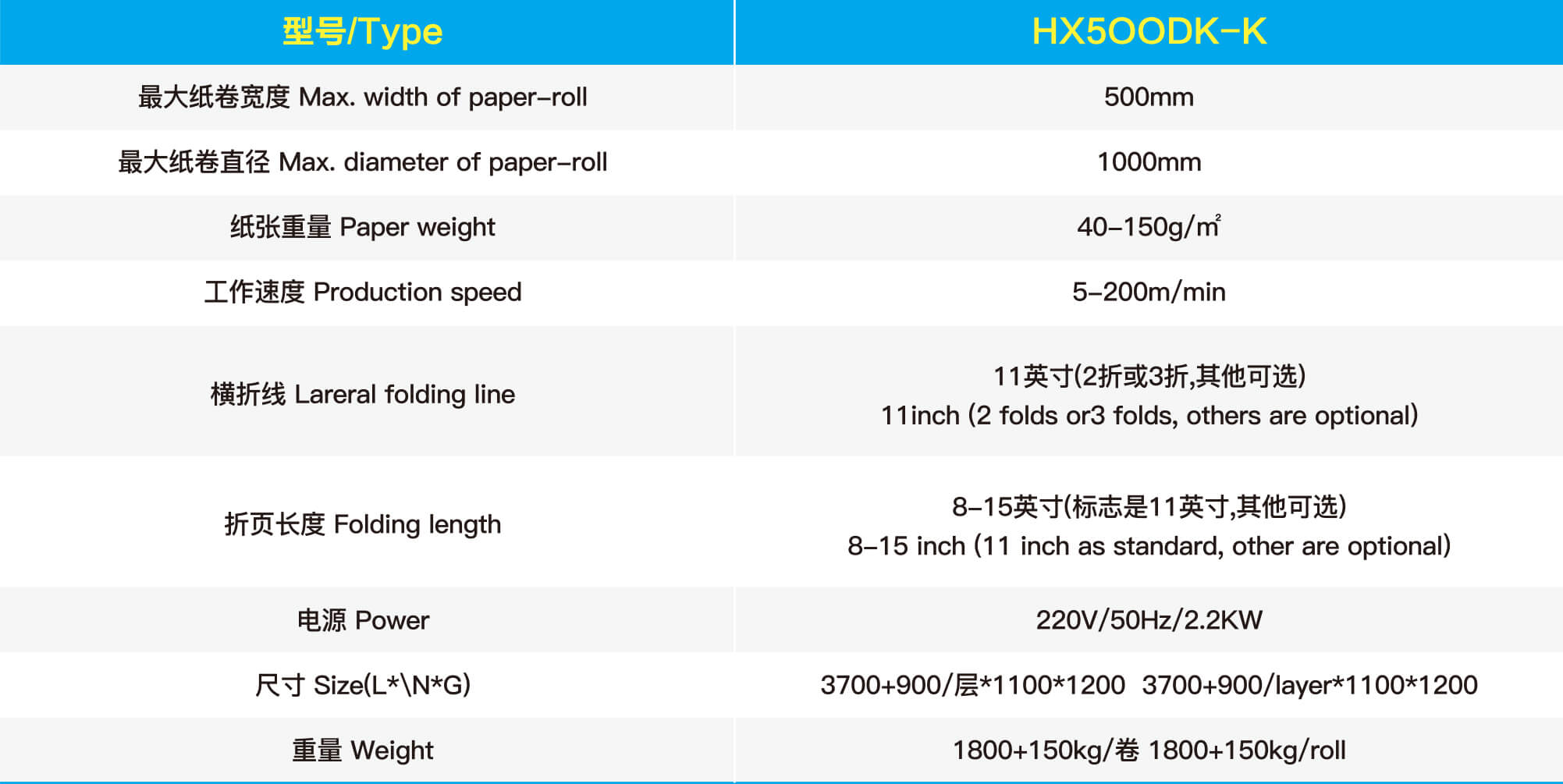

主要技术参数·Specifications 图层 138 拷贝.png
